TARSUS UNDERGROUND GAS STORAGE PROJECT
Client:
Tekfen Construction and Installation Co., Inc.
Location:
TURKEY
Year:
2016-2018
PROJECT DETAILS
2 IPS Stations, 2 Metering Stations, Leaching Station, Water Intake Station, Switchyard and approx. 100 km GRP

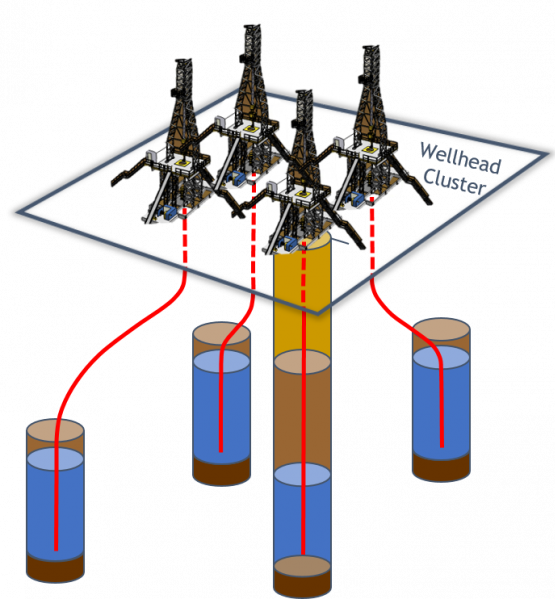

and CS pipelines both for leaching and gas transportation to construct 60 caverns, inject natural gas to caverns.
SCOPE OF SERVICES
- Plot plan and layout preparation, equipment arrangements
- 3D modelling in AVEVA of the Leaching Station and IPSs
- Pipeline designs for Fresh Water Intake and Brine Discharge
- Transient Analyses and Surge Analyses
- River Water Intake Structure and Sea Discharge Design
- Piping design; stress analysis, isometrics, piping plan & sections
- All civil and structural engineering including infrastructure
- Electrical design, Switchgear 154kV and Overhead Lines
- Instrumentation design
- Fire Fighting System Design
- Preparation of material take off lists, material requisitions and technical evaluations of vendor proposals
- Project management
PROJECT CONFIGURATION
- Freshwater Supply & Brine Discharge Pipelines and Pump stations
- Injection and production station – Ballica, Alifaki and Kocaköy
- Leaching Station
- 6 Pig Launcher/Receiver Stations
- 12 Gas Manifolds
- 3 Vent Stacks
- 8.19 km 40“/32“/24“ Main Gas Pipelines
- 14.38 km 36“/24“ Field Gas Pipelines
