TÜPRAŞ İZMİR FCC REVAMP PROJECT (U-4000 PROCESS UNIT)

Client:

Turkish Petroleum Refineries Co., Inc. (TÜPRAŞ)

Location:

İzmir / TURKEY

Year:

2017-Ongoing

PROJECT DETAILS

Detail Engineering recently awarded to TEKFEN Engineering. Similar scope with TUPRAS Izmit FCC Revamp Project. Modernization of the unit with major modifications in;

  • Reactor and Regenerator Section
  • Main Column Section
  • Gas Concentration Section


Basic Engineering is performed by UOP. Detail Engineering is being performed by TEKFEN Engineering. A service agreement is signed between UOP & TEKFEN for some specific activities such as stress analysis for critical lines, detail mechanical

drawings, etc…


Project will commence in September 2017. First activities will be as built studies and combination of UOP P&IDs with existing unit P&IDs. Equipment Procurement activities will also be started in parallel.

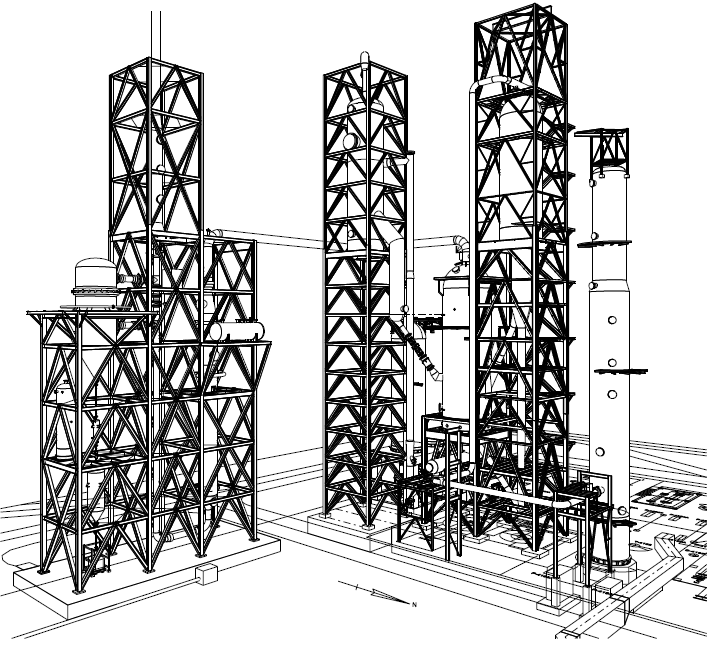

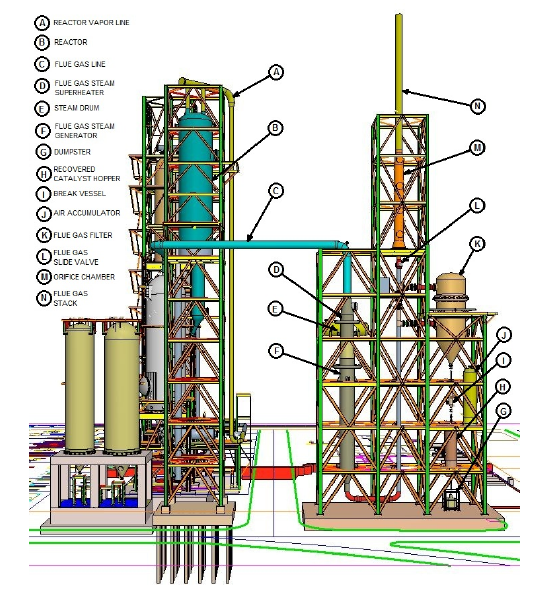

Main difference with Izmit FCC Revamp Project is that there are two separate structures for reactor and equipment on flue gas line.


SCOPE OF SERVICES

  • As built study and 3D modelling & Engineering Module
  • Creation for all unit including new and existing systems
  • Completely new structure with pile foundation for new reactor
  • Completely new structure flue gas exchangers, filter, stack, and etc…
  • New exchangers to enhance heat efficiency of the unit
  • New pumps and drums
  • Evaluations and retrofittings in existing structure
  • All related required activities
